8HP95 Transmission 3D Scan File | Hellcat, Trackhawk, TRX | STL, OBJ, PLY, 3MF

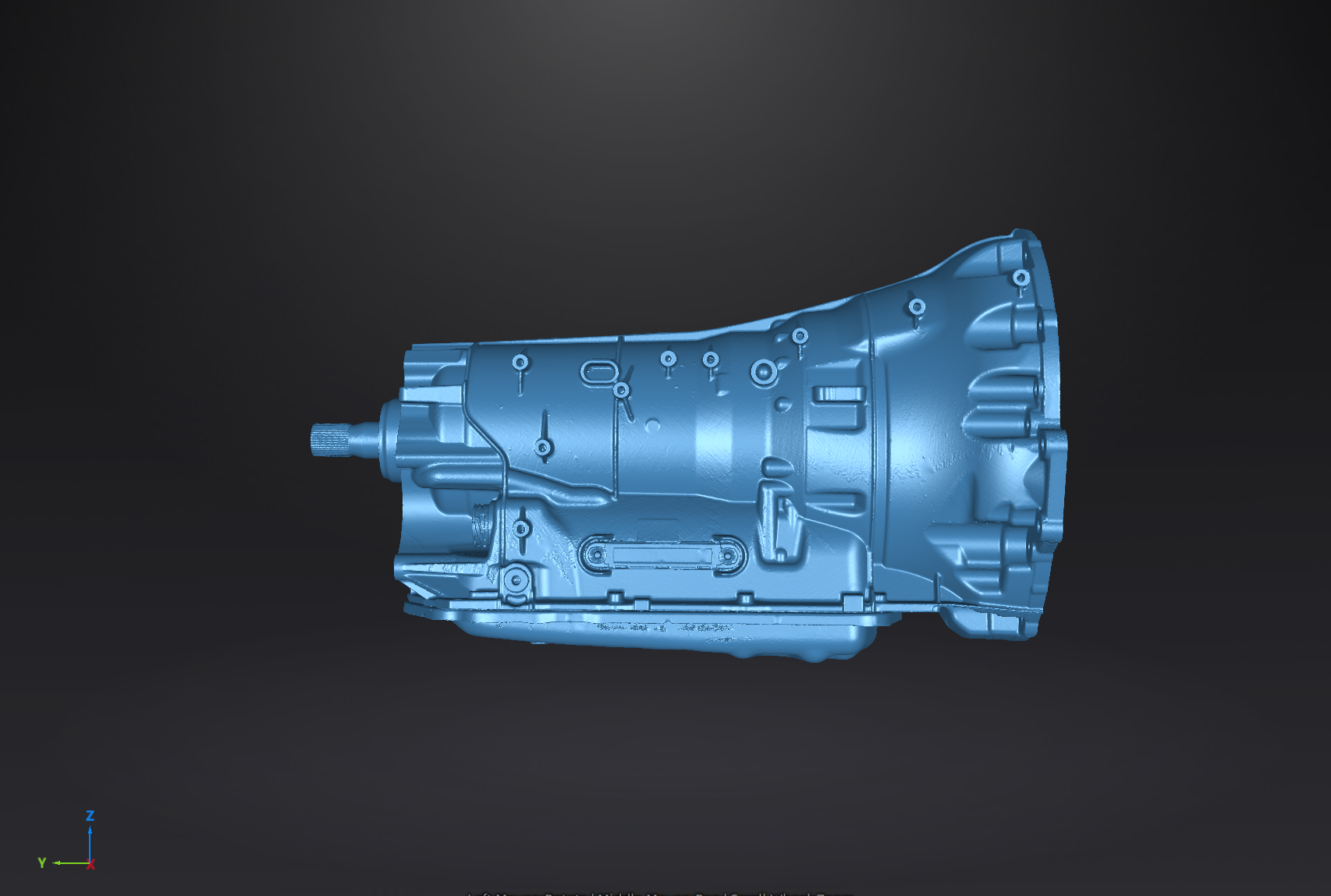

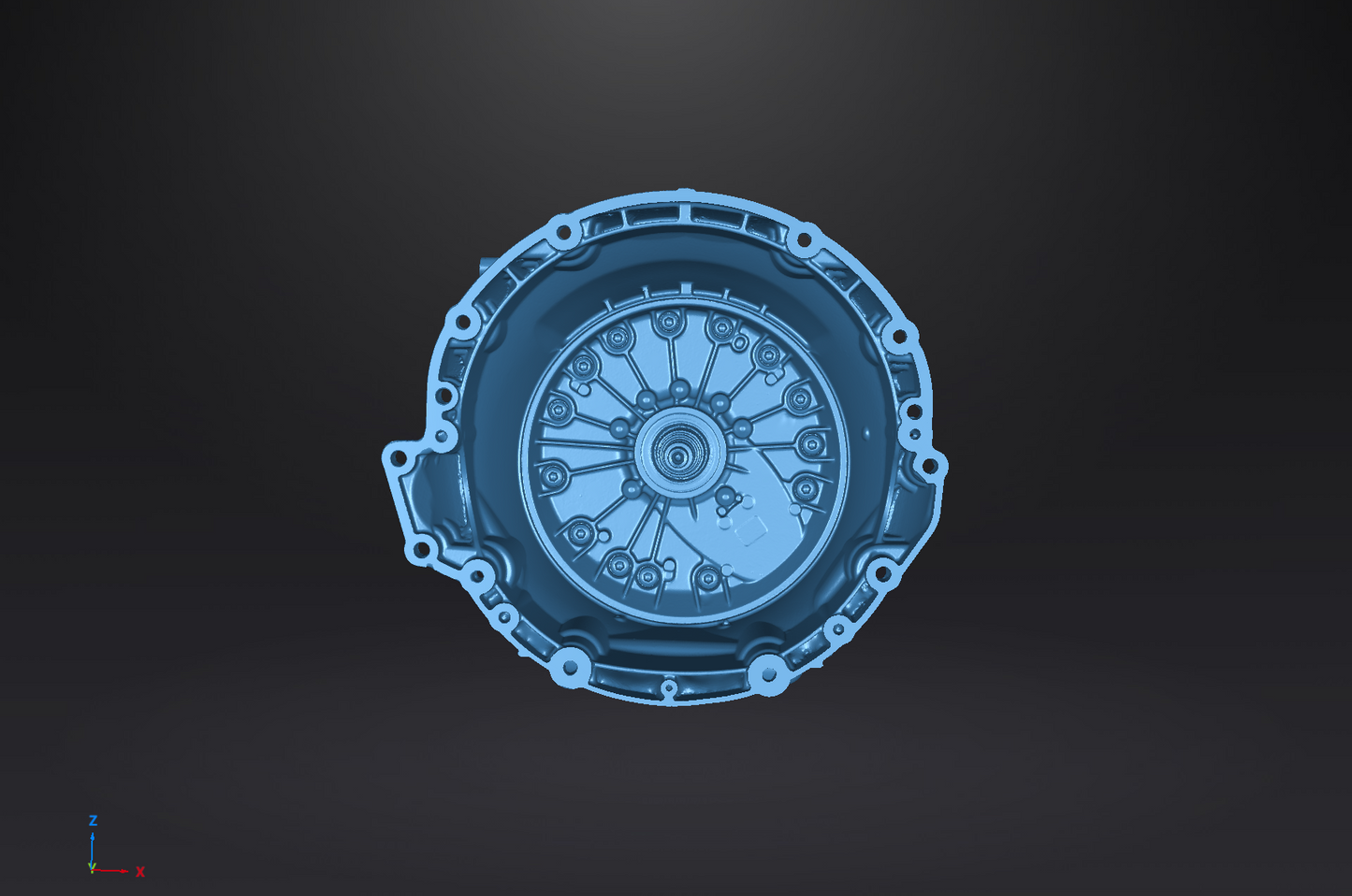

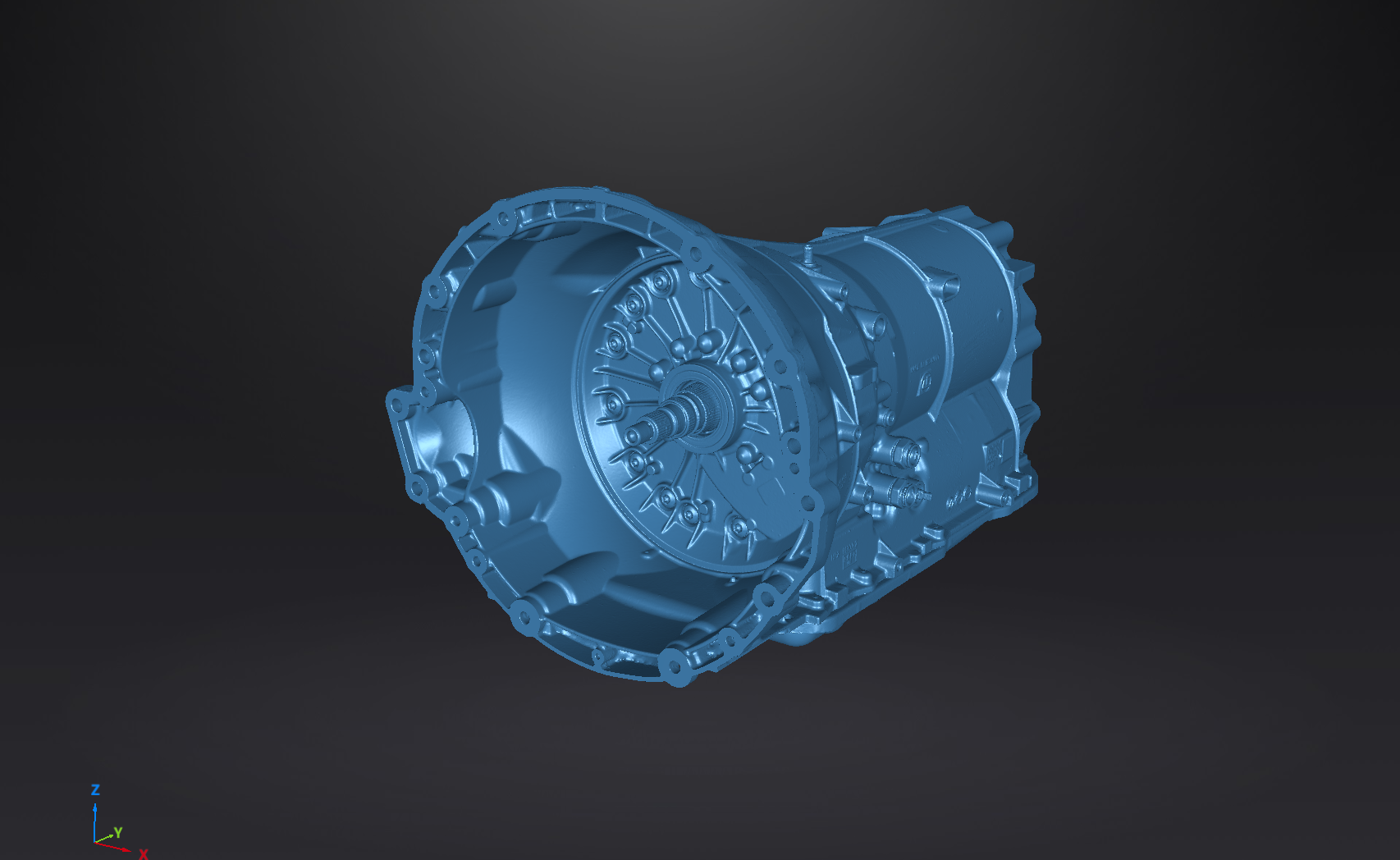

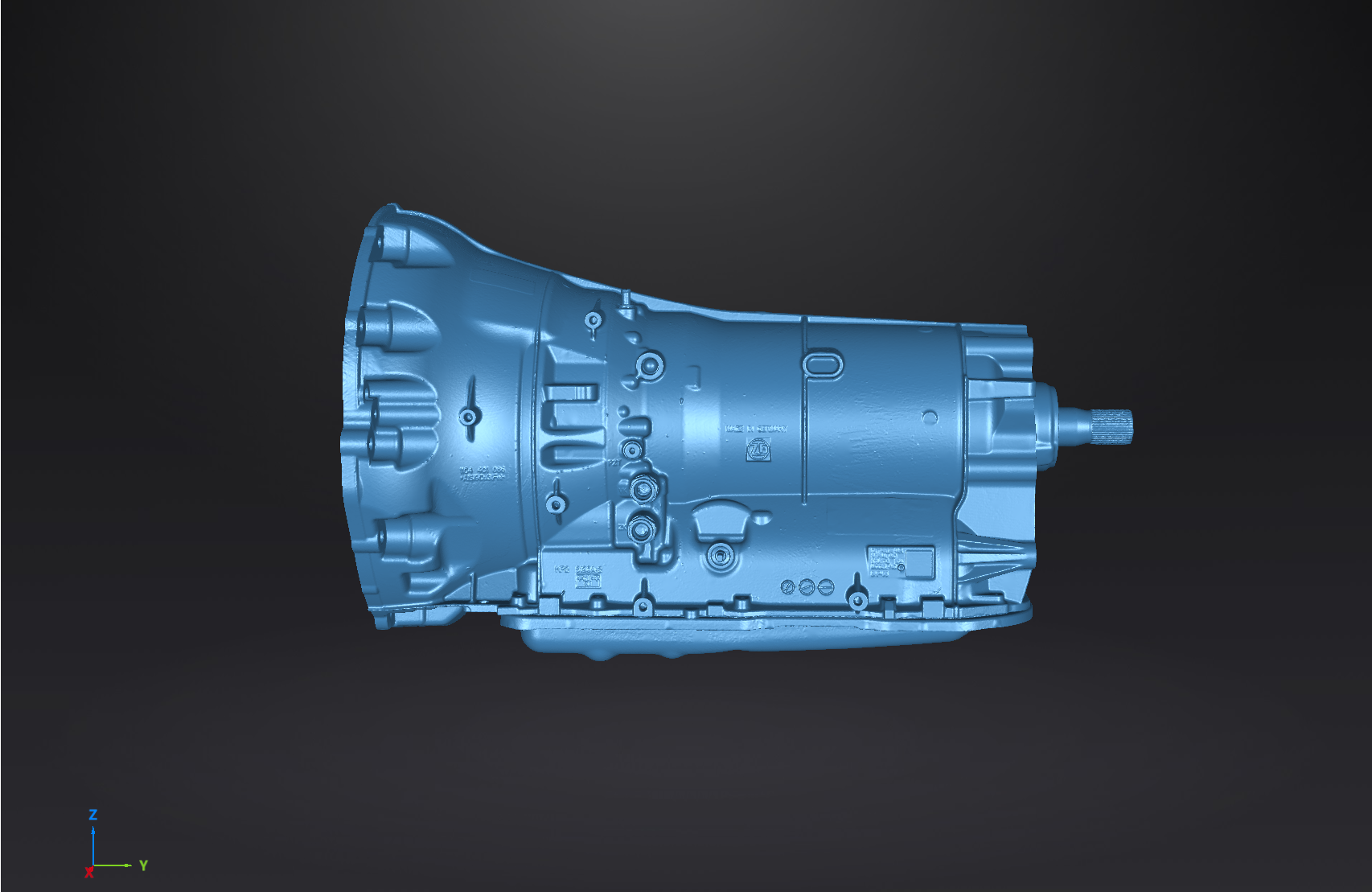

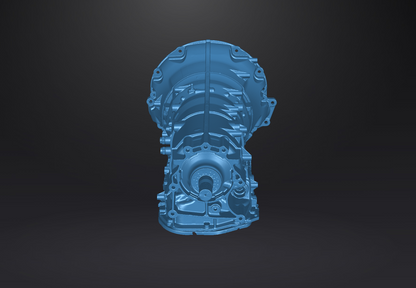

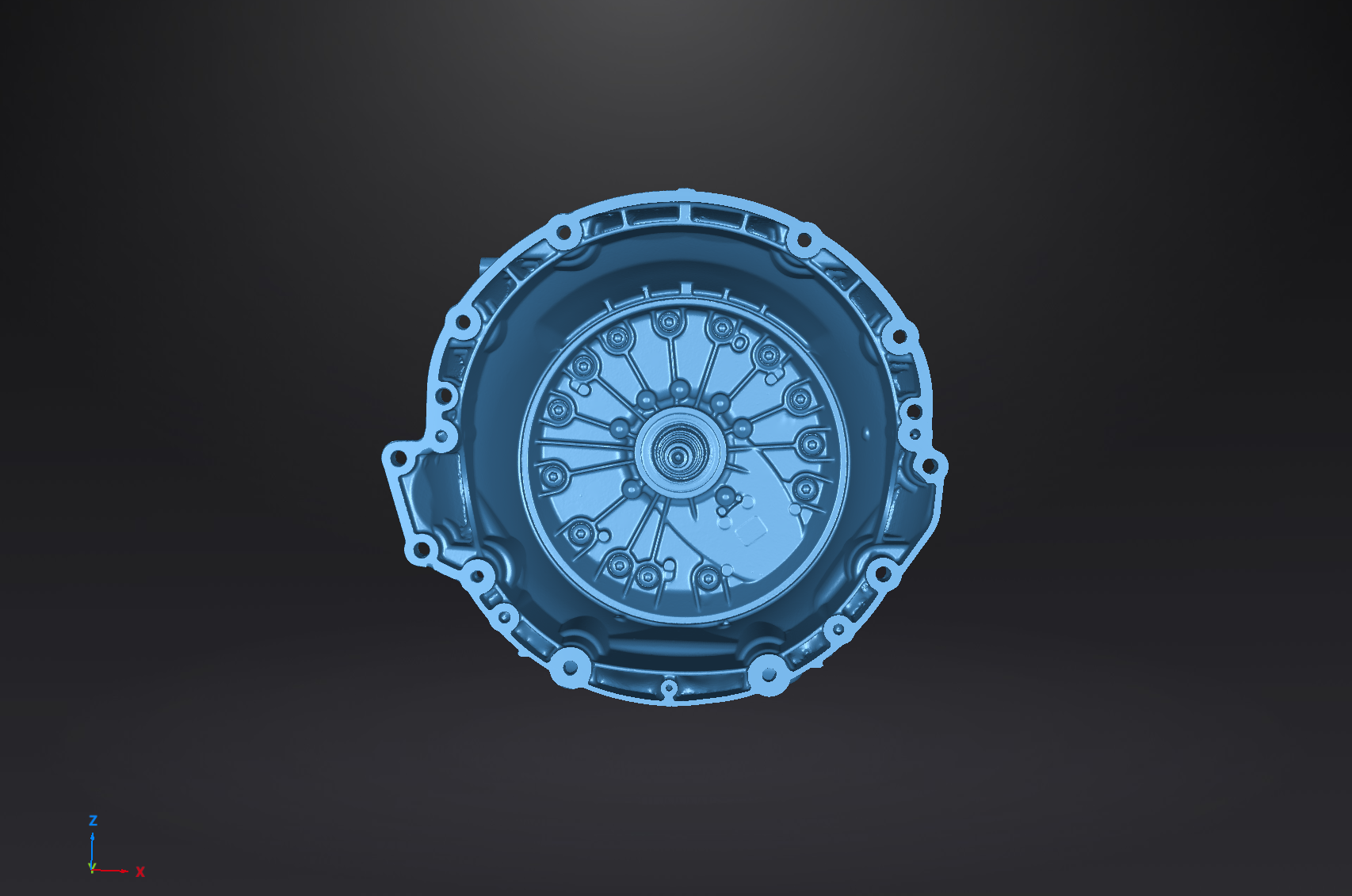

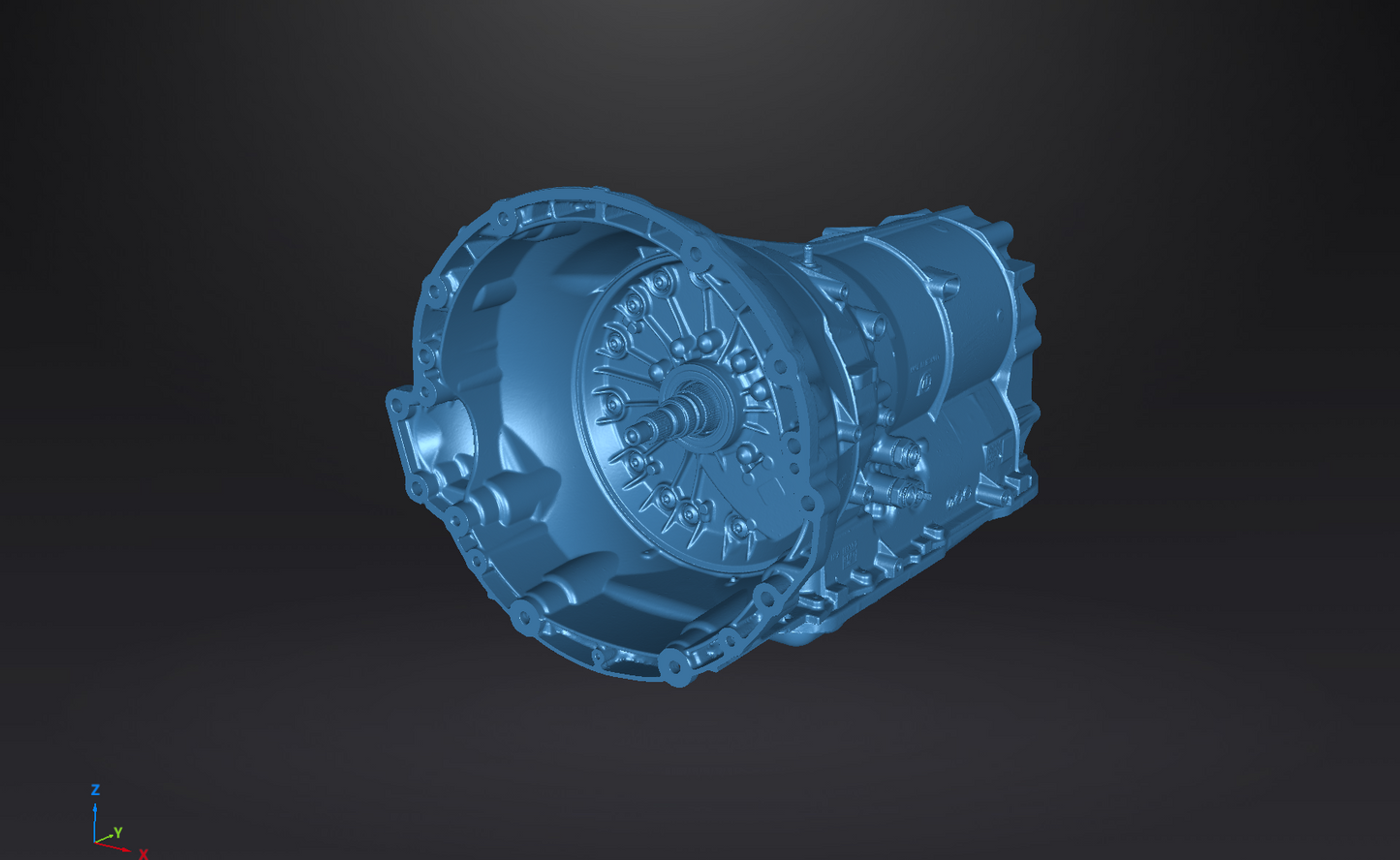

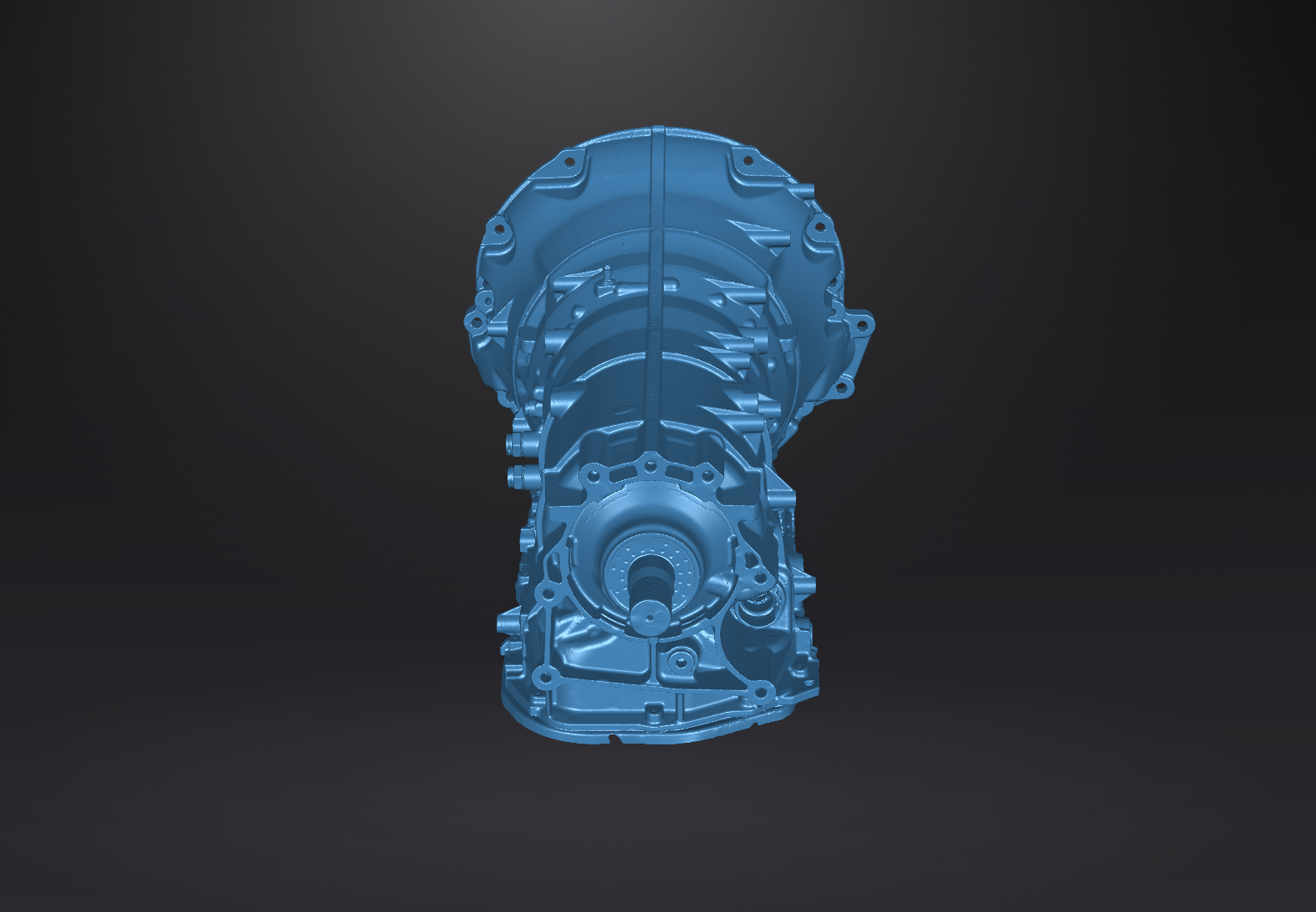

High-accuracy 3D scan of a Dodge 8HP95 transmission used in the SRT Hellcat, Jeep Trackhawk, and RAM TRX platforms.

Perfect for:

- Chassis and drivetrain mockups

- Transmission fitment planning

- CAD reference work

- Crossmember and tunnel design

- Fabrication and packaging projects

- 3D printing applications

This transmission was professionally scanned using an Einscan Rigil scanner to capture highly accurate external geometry and mounting features.

Included mesh file formats:

- STL

- OBJ

- PLY

- 3MF

Scan specifications:

- Resolution: 0.2 mm

- High-detail watertight mesh

- Ready for 3D printing or CAD reference use

Options include: (each option includes the mesh scan files)

- Reference sketch data, so you have precise measurements for your needs (used for bolt patterns and external dimensions).

- Parametric Solid comes as a reverse engineered transmission file that is editable and much easier to work with in traditional CAD software.

If you need specific dimensions, extracted measurements, or additional file support, feel free to contact us before purchase.

Please note:

Due to the nature of digital products, 3D scan and CAD files are non-refundable.

Need custom scanning, CAD modeling, or product design work?

Reach out to Gearhead Fabworks for custom design and fabrication support.
